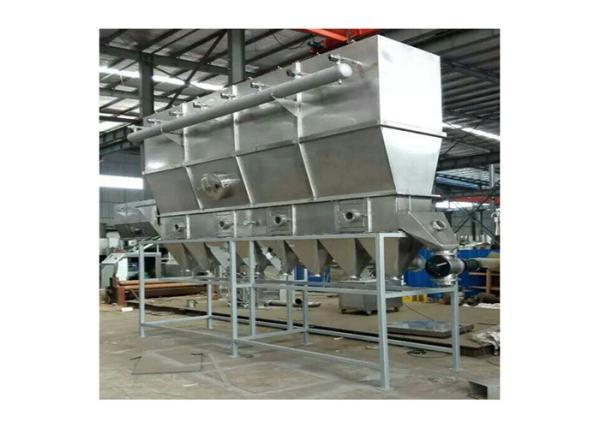

    High Efficiency Fluid Bed Drying Equipment Tea Leaf Fruit Vegetable Food Vibrating

    Ask Lasest Price
    Brand Name : JingSu ShengMan
    Model Number : Fluid Bed Drying machine
    Certification : CE and ISO9001
    Price : USD20000-USD300000
    Payment Terms : L/C, T/T
    Supply Ability : 10sets
    Delivery Time : 60-90days
    • Product Details
    • Company Profile

    High Efficiency Fluid Bed Drying Equipment Tea Leaf Fruit Vegetable Food Vibrating

    High Efficiency Tea Leaf Fruit Vegetable Food Vibrating Fluid Bed Drying Equipment


    Introduction


    Raw material is heated evenly, heat exchange is fully, and large intensity of drying

    Use vibration motor as vibration source. It is smooth in running and convenient in maintenance. The noise is low and the life is long.

    The state of fluidization is uniform and no dead gaps and broken phenomenon. Therefore the dried, cool can be got. It is good in adjustment and width in field of application. The thickness of raw material and the speed of raw material to be moved inside the machine and the change of vibration breadth can be realized through steeples.

    It is small to damage the surface of raw material, so it can be used for raw materials that are easy broken. If the granule is not normal, the effect of process can not be effected.

    Because of adapting the structure of fully seat, it is effective to prevent from the cross pollution of raw materials and the working environment is clean.

    Basically the drying time is on average, the staying time is short, and the thickness of fluidized bed is also very short, 2-5cm.



    High Efficiency Fluid Bed Drying Equipment Tea Leaf Fruit Vegetable Food Vibrating


    Features


    1. Adopts new type quick-open structure for upper bed and bottom bed. Upper bed can be moved easily. So it is very convenient to clean and wash the drying system.
    2. Bed plate adopts laser punching, it can avoid the deformation in common punching process effectively.
    3. Bottom bed adopts stainless steel seamless tube for supporting, the structure of bed is more stronger and make the life of equipment longer.
    Material is heated uniformly, heat exchanging is full and drying intensity is high. Energy can be saved about 30%.
    4. Vibration source is vibrating motor. It features constant operation, convenient maintenance, low noise and long life.
    Fluid state is stable, there is no phenomenon of gap or blowing out.
    5. There is less damage to the surface of material. It can be used for drying material that is easy to broken. The work efficiency is not affected even if the granule of material is irregular.
    6. Adopts full sealed structure. It effectively avoids cross infection between and air, the operation environment is clean.


    1. High Efficiency Fluid Bed Drying Equipment Tea Leaf Fruit Vegetable Food Vibrating

    3. Technical parameters


    MODELarea of fludized -bedtemperature of inlet airtemperature of outlet aircapacity to vapor moisturevibration motor
    kg/hmodelpower kw
    ZLG3*0.30.970-14040-7020-35YZS8-60.75*2
    ZLG0.45*0.62.770-90YZS15-61.1*2
    ZLG6*0.452.780-100YZS15-61.1*2
    ZLG6*0.63.6100-130YZS20-61.5*2
    ZLG6*0.95.4140-170YZS30-62.2*2
    ZLG7.5*0.64.5130-150YZS30-62.2*2
    ZLG7.5*1.511.25230-330YZS50-63.7*2
    ZLG8*1.814.4290-420YZS75-65.5*2

    Remark:

    1. Parameters above in the table are regular model for reference;

    2. We could make special model / size according to the customer's actual situation or requirement, please contact sales team to konw more details about vegetable dryer.


    Applications

    Organics: oxalic acid, succinic acid, hydroquinone, p-nitrobenzoic acid, fumaric acid, pentaerythritol, resorcinol, catechol, calcium hypochlorite, sodium silicate, GDL, sodium gluconate, thiourea, sorbitol, dicyandiamide, iminodiacetonitrile, itaconic acid

    Fertilizer: potassium dihydrogen phosphate, calcium hydrogen phosphate, monoammonium phosphate, ammonium sulfate, magnesium sulfate heptahydrate

    Pesticides: Imidacloprid granules, granules glyphosate

    Polymer: High-absorbent resin, a polystyrene resin, sodium polyacrylate

    Chemical additives: methyl cellulose, polyacrylamide, hydroxyethyl cellulose

    Food and beverage industry:L-arabinose, acesulfame, erythritol, trehalose, caramel, tartaric acid, coffee, bread crumbs, milk powder, citric acid, potassium citrate, sodium citrate , maltitol, xylose, xylitol, Ru refined, sugar, potassium sorbate, salt, sodium saccharin, monosodium glutamate, sodium iso-VC,

    Pharmaceutical medical industry:honeysuckle, taurine, vitamin C


    High Efficiency Fluid Bed Drying Equipment Tea Leaf Fruit Vegetable Food Vibrating

    After-sale service:
    Provide considerate services to minimize clients’ worries.

    1. Assist clients to prepare for the first construction scheme.
    2. Install and debug the equipment.
    3. Train the first-line operators.
    4. Examine the equipment.
    5. Take initiative to eliminate the troubles rapidly.
    6. Provide technical support.
    7. Establish long-term and friendly relationship.


    Service commitment:
    1. Provide clients one-year warranty to make sure the machine work well.

    2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.

    3. Send every client a preferential quotation.
