| Brand Name : | JingSu ShengMan |
| Model Number : | XSG |
| Certification : | CE and ISO9001 |
| Price : | USD20000-USD300000 |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 10sets |
| Delivery Time : | 60-90days |
10% Discount With Best Quality Air Flow Peanut Rice Husk Wood Sawdust Flash Dryer Drying Machine
Drying is important before briquetting process. To get the superior quality of biomass briquettes with high density, it is necessary to control the moisture of material at 8-12% exactly. The selection of drying plant models depends on the original moisture content of raw materials.

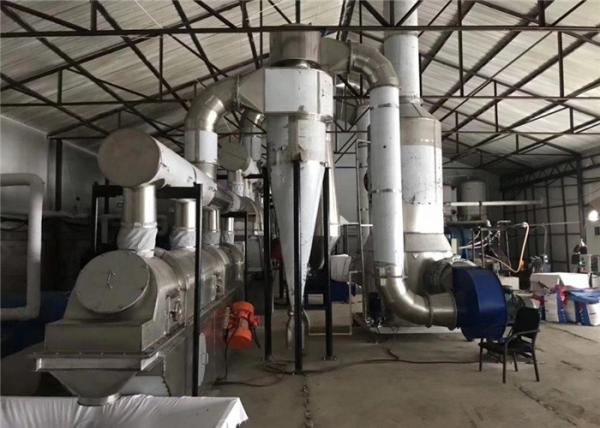

This dryer is suitable for drying materials of moisture 30-60%. Wet material is input into the hopper. The dryer is equipped with two fuel boilers, inlet, steel pipe, exhaust blower (fan), air lock and cyclone. Wet materials are input into the hopper. The fuel boiler generates hot air which mixes with wet materials and then is sucked into the pipes by the exhaust blower (fan) quickly. And then hot air is flowing and going though the curving pipes and buffer (drying chamber) of dryer, thus wet materials is finished to dry, and the dried materials are discharged from the outlet with air lock. This wood dryer can reduces the moisture to 8-12% one time with the advantages of lower cost consumption and high efficiency.
Technical parameters
| type | Barrel diameter mm | main machine dimension mm | main machine power kw | treatment wind capacity m/h | water evaporation quantity kg/h |
| XSG-2 | 200 | 250*2800 | 5-9 | 300-800 | 10-20 |
| XSG-3 | 300 | 400*3300 | 8-15 | 600-1500 | 20-50 |
| XSG-5 | 500 | 600*4000 | 12-24 | 1500-4000 | 30-100 |
| XSG-6 | 600 | 700*4200 | 20-29 | 2500-5000 | 40-200 |
| XSG-8 | 800 | 900*4600 | 24-35 | 3000-8000 | 60-600 |
| XSG-10 | 1000 | 1100*5000 | 40-62 | 5000-12500 | 100-1000 |
| XSG-12 | 1200 | 1300*5200 | 50-89 | 10000-20000 | 150-1300 |
| XSG-14 | 1400 | 1500*5400 | 60-105 | 14000-27000 | 200-1600 |
| XSG-16 | 1600 | 1700*6000 | 70-135 | 18700-36000 | 250-2000 |
Application
SXG rotating flash drying machine is applicable to dry viscous,
thixotropic, thermosensitive powdery and granular materials in the
dyes, pigment, chemical, ceramics, food and pharmaceutical
industry. The appropriate materials can be dried by this drying
equipment include:
1. Inorganic materials: boric acid, calcium carbonate, hydroxide,
copper sulfate, ferric oxide, barium carbonate, antimony trioxide,
metal hydroxide, heavy metallic salt and compound cryolite.
2. Organic materials: atrazine, lauric acid, benzoic acid, sodium
oxalate, cellulose acetate
3. Ceramics: kaolin, silica and calay
4. Dyes: anthraquinone, black iron oxide, butyrate, titanium
hydroxide, zinc sulfide, azo dyes
5. Food: soy protein, gelatinized starch, vinasse, triticin, wheat
starch
6. Pharmaceuticals: analgin (The first domestic application of
flash dryer)
1 There are several feeding systems available, we can get stable
stable feeding without bridging phenomenon
2 There has cooling system on agitating part of dryer, avoiding
over-heat of raw material.
3 Special designed gas sealing device and shaft cooling device to
lengthen life span of driving system.
4 Special designed air distribution system, which could reduce air
pressure drop, improve efficiency of hot air
5 There has classification ring in dryer chamber, size and final
moisture content of product is adjustable.
6 It could increase bulk density of product compared with other
drying equipments
7 There has high spiral air speed inside dryer, drying time is
short, it could prevent wall-stick problem, and metamorphism of
heat-sensitive material.
8 There has air blowing system, blowing air from bottom of dryer
with 30-60m/s speed, it could prevent powder back to hot air pipe.
9 relatively low outlet air temperature, to improve drying
efficiency.
10 Strong disintegrating system and spiral hot air could crush
material, and obtain fine, uniform product.
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work
well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
|
|
